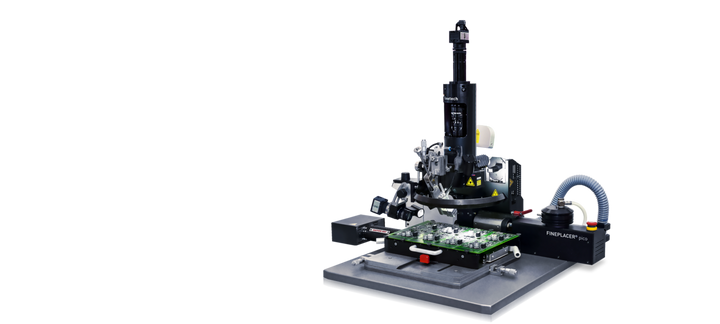

The system is a bestseller for professional mobile device rework in high density environments. A high level of process modularity allows all rework process steps within one system. The FINEPLACER^® pico rs system is at home in R&D, process development, prototyping and production environments.

Application area from 01005 up to large BGA on small to medium sized PCBs, with the goal to have highly reproducible soldering results.

Key Facts:

• Full hot air rework system
• One system for rework and micro assembly
• Industry-leading thermal management
• Unique FINEPLACER^® working principle
• Placement accuracy better 5 µm
• In-situ process observation in HD
• Data/media logging and reporting function
• Overlay vision alignment system (VAS) with fixed beam splitter
• 3-color LED illumination
• Full process access and easy programming
• Synchronized control of all process related parameters
• Software controlled top heater calibration
• Modular machine platform allows in-field retrofitting during entire service life
• Individual configurations with process modules
• Fully manual or semi-automatic machine versions
• Force controlled component handling
