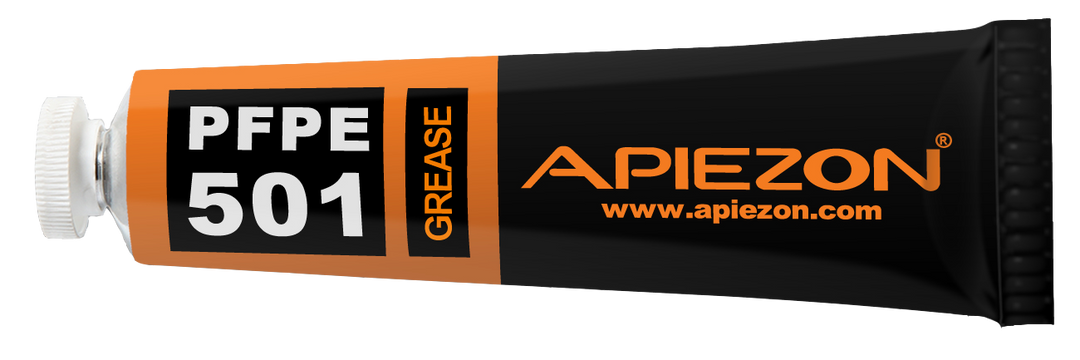

PFPE 501 - High Vacuum Grease
Apiezon PFPE 501 is a chemically inert, high temperature and extreme pressure lubricant. With an upper operating temperature of 250°C and vapour pressure of 1.3 x 10-12 at 25°C, it is robust, versatile and can be used for sealing and lubricating under the most extreme operating conditions. This includes environments where aggressive chemicals and strong oxidising agents are regularly used.
Apiezon PFPE 501 has proven to be an excellent sealant and lubricant in short path distillation, coating and semiconductor industries.
Apiezon PFPE 501 is also certified H1 food grade by NSF international, who are the global independent body that certify food service equipment and supplies for use to the industry. Having the H1 classification confirms that Apiezon PFPE 501 can be used safely in the food production chain where incidental food contact may occur. To achieve this level of accreditation with NSF, the content in the final product must not exceed 10ppm (parts per million)
Why Use Apiezon PFPE 501 Grease?
- PFPE based
- High temperature lubricant
- Used in oxygen rich environments
- Ultra high vacuum
- Chemically inert
- Extreme pressure
- Wide temperature range
Benefits of Apiezon PFPE 501 Grease?
- Extended equipment life
- NSF H1 food grade certified
- High temperature lubricant
- Reduced equipment downtime
- Lower service costs
- Life-time lubrication
- 10 year shelf life
- Guaranteed Apiezon quality
- Expert technical support
| Typical Property | Apiezon PFPE 501 | |
|---|---|---|
| Main areas of application | High temperature lubricating vacuum grease inert |
|
| NLGI No. | 2 | |
| Penetration P60 | 280 | |
| Typical working temperature range | °C °F |
-15 to 250 5 to 482 |
| Vapour pressure @ 25°C / 77°F, Torr | <1.3 x 10-12 | |
| Relative density @ 25°C / 77°F | 2.003 | |
| 4 ball wear scar (mm) ASTM D2266 (40kg) | 0.94 | |
| Outgassing characteristics ASTM.E 595 | TML CVCM |
<1% <0.1% |
| Evaporation 24hrs @ 100°C / 212°F | 0.02 | |
| Oil separation 24hrs @ 100°C / 212°F | 2.10 | |
| Low temperature torque, g/cm | 25°C / 77°F Starting 25°C / 77°F Running |
162.3 |
