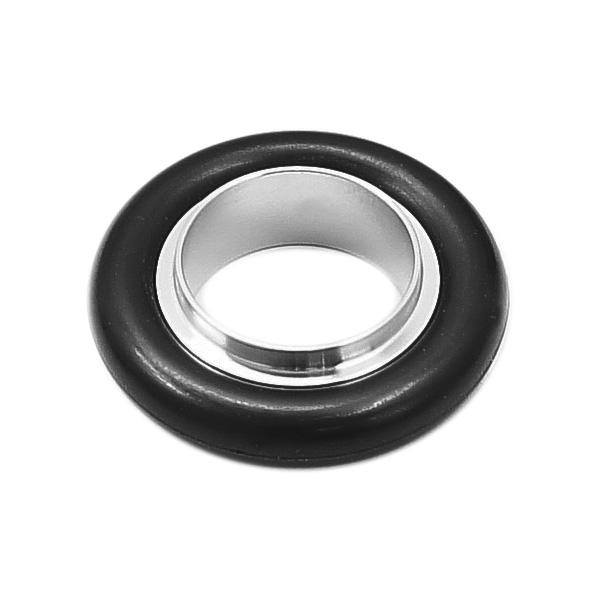

KF NW Centering Rings Aluminium/NBR O Rings
Nano Vacuum
SKU: KF16-ALNBR-CR
Our KF NW Aluminium Centering Rings with NBR O Rings follow ISO-KF standards. They are commonly used to build vacuum systems with a vacuum level < 10E-8 mbar/Torr. They are often called quick flange fittings because they are quick to assemble. A circumferential clamp and centering ring form the vacuum seal between the connecting flanges. The centering ring contains a rubber elastomer o-ring. The standard sizes for quick flange fittings are KF10, KF16, KF25, KF40, and KF50 with flange sizes NW10, NW16, NW25, NW40, and NW50, respectively. They are made of Aluminium and NBR O Rings suitable up to 120C Temperatures.
