Innovation from the Leader in Nanocoating

Europlasma is one of the world’s leading innovators in the design and production of
low pressure plasma technologies. Europlasma has the unique advantage of being
fully vertically integrated: we design and produce all of our machines, technologies,
chemicals and applications in-house.

  • Europlasma’s patented Plasma Enhanced Chemical
         Vapour Deposition

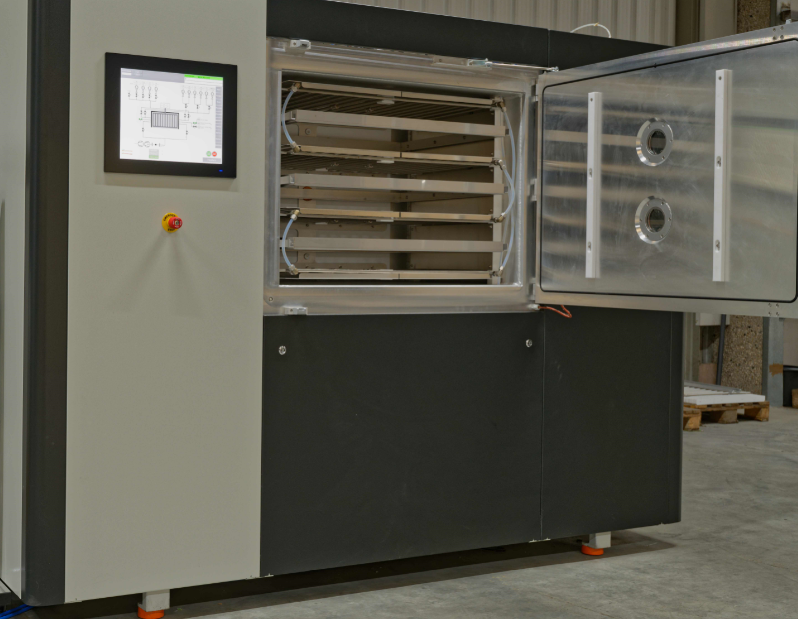

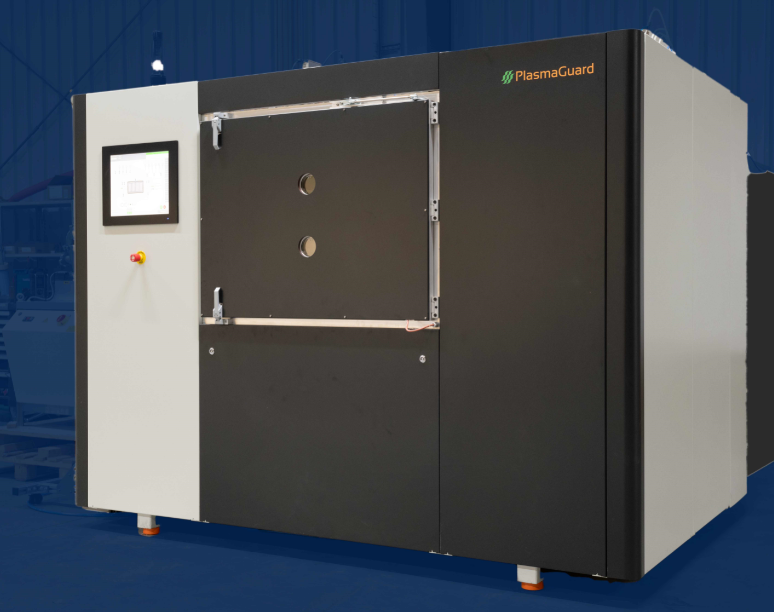

  • Our state of the art PECVD machines
  • The PECVD process
  • Europlasma specialises in two types of coatings
  • Hydrophilic coatings
  • Hydrophobic coatings are unmatched
  • PlasmaGuardS
    PlasmaGuard S is a fully Halogen free nanocoating, typically applied between 100 and 200 nanometers thick. It has a very high water contact angle (>120°) so it significantly reduces water ingress.  It can be applied on a very wide variety of materials including electronics, plastics, textiles and medical devices.
    Plasmaguard S properties:
    • IZ-axis conductive
    • Biocompatible according to ISO 10993-5
    • Not hypersensitive according to ISO 10993-10
    • REACH compliant for SVHCs
    • RoHS and WEEE compliant
    • Allows for excellent membrane breathability (Ret value of 0.9 according to ISO11092)
    • Has no audible impact on acoustics
    • Is very resistant to abrasion

    PlasmaGuard E
    PlasmaGuard E is a fully halogen free dielectric barrier coating for PCB.
    It is typically applied at 1 micron and at that thickness outperforms conformal coatings  many times thicker.
    PlasmaGuard E properties:

    • Exceeds IPX7 and IPX8 requirements
    • Biocompatible according to ISO 10993-5
    • Not hypersensitive according to ISO 10993-10
    • REACH compliant for SVHCs
    • RoHS and WEEE compliant
    • Very resistant to abrasion
    • Excellent dielectric properties
    • Excellent chemical and moisture barrier properties.
    • Unrivalled sweat and salt water barrier properties
    • Applied at 1µm, many times thinner than other coatings
    • Pinhole free
    • Excellent wettability and adhesion
